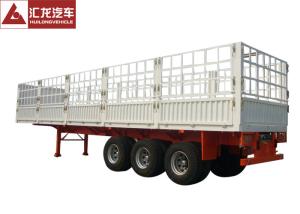

Store House Cargo Container Trailer Leaf Spring Large Payload Solid Frame
Description:
• Core Application
The cargo part of the storehouse cargo transport trailer adopts a fence structure and is a common semi-trailer vehicle. The main purpose of warehouse semi-trailers is to transport farm and light products like fruits, vegetables, and daily supplies.
• Large Payload
The storage semi-trailer has 3 axles and the maximum load is up to 40 tons. It is made of steel plate with high strength, and welded by automatic submerged-arc processes.
Advantages:
• Solid Frame
The frame is the integration of longitudinal beam and crossbeam. Strength, stiffness and toughness can be balanced. The solid frame provides large carrying capacity and will not be permanently distorted.
• Low Abrasion
The load of each axle is average and the angle of system pull rod is appropriate. During the driving on the bumpy road, the friction and slippage distance can be reduced. Hence, the tire wear can be effectively decreased. Furthermore, the adjustable pull rod and wheel base can efficiently avoid partial occlusion of tire.
• Wide Adaptability
The stake trailer is applied in highway, urban highway and specializes in curved mountain road. Various goods can be transported, such as coal, bulk cargo, cement, and steel bar etc. The attendance rate of the trailer is high.
Specifications:
| DIMENSIONS |
| Tare Weight |
8200KGS |
Payload |
40000KGS |
| Overall Length |
12500mm |
Overall Width |
2500mm |
| SPECIFICATION |
| Chassis |
Heavy duty and extra durability designed I beam;
Opting for high tensile steel Q345;
Welded by automatic submerged-arc processes;
Top Flange 14mm, width 140mm;
Middle Flange 6mm;
Bottom Flange 16mm, width 140mm
|
| Axle |
3 axles |
| Brand name: BPW, L1 or FUWA |
| Suspension |
Mechanical suspension or air suspension |
| Spring |
Leaf spring or air bag |
| King Pin |
JOST brand 2” Bolt-in King Pin |
| Landing Gear |
JOST brand Two-speed;
manual operating;
heavy duty landing gear
|
| Wheel Rim |
8.5-20 ,9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim |
| Twist Lock |
12 no. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container |
| Tyre |
11.00R20 , 12.00R20, 11R22.5,12R22.5,315/80R22.5 |
| Spare Tyre |
One set of spare tire including a carrier |
| Braking System |
WABCO RE 6 relay valve;
T30/30+T30 Spring brake chamber;
40L air tanks
|
| Painting |
Complete Chassis sand blasting to clean rust;
1 coat of anticorrosive prime;
2 coats of final paint
|
| Accessories |
One standard tool box |
